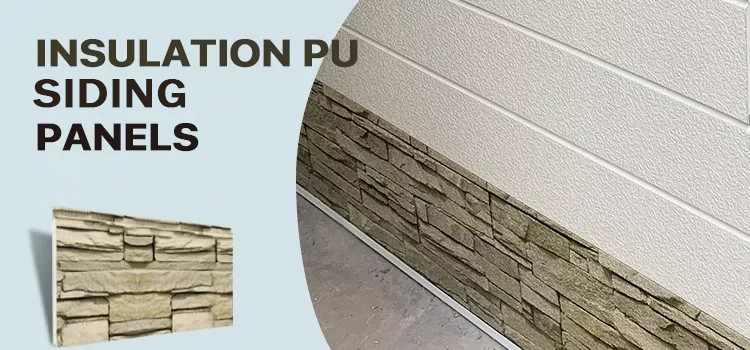

PU SIDING PANEL
Siding panels are manufactured with corrosion-protected, corrugated steel facings bonded to a core of polyurethane foam and used extensively as roofing insulation and vertical walls. We have a wide range of color and pattern ranges to satisfy your unique requirement.

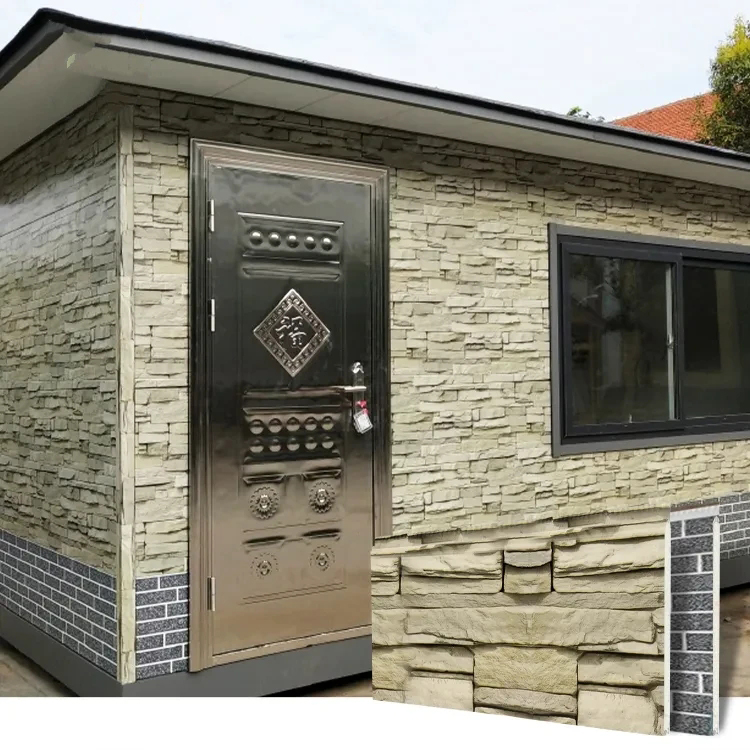

Metal sidings have been widly adopted in China, US, Canada, South Korea, South Africa, Middle East, Russia, Malasia, Thailand etc. Such metal sidings can be used on such constructions as hospitals, schools,residences,hotels,office buildings, tourist holiday houses, government agencies, etc, and also can be usded to built many temporary houses such as integrated houses, sentry boxes, mobile toilets, and municipal houses.

Metal carved panel has excellent thermal insulation characteristics. Compared with traditional exterior wall thermal insulation decorative building materials, it has excellent cold resistance and thermal insulation performance. It greatly reduces the energy consumption of heating and refrigeration, thus saving energy expenditure. The product has high cost performance. The installation method is simple and fast. It is not limited by seasonal climate and geographical environment. It is suitable all year round. The significantly shortened project cycle not only speeds up the project progress, but also saves the construction cost and reduces the comprehensive cost. While achieving the effect of decoration and thermal insulation, the metal carved board minimizes the load of the outer wall and enhances the availability of space and land.
Product Name
Exterior panels
Composition
Surface:Al-Zn alloy coated steel sheet and high-quantity nippon paint Core:Rigid high-density polyurethane foam
Bottom: Aluminium foil fiberglass cloth
Design style
Solid color, brick grain, stpme graon, wood grain, Marbiling or customize
Thickness
16mm(20mm/25mm/100mm/200mm/) or as customer requested

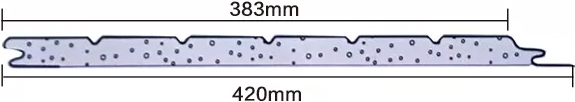

Width
383 or as customers requested
Lenghth
5800mm or as customers requested
Weight
3.45-7kg/m2
Fire-proof-level
B level
OEM
Logo, pattern and panel size
Warranty
More than 5 years
Advantages
Fire resistant, waterproof, thermal Insulation, Soundproof, Earthquakem proof, Eco-Friendly, Flame retardant, Easy Installation.
Application
Hotel Motel, cottages, B&B, Villa, Apartment, Building, Hospital, School, Mall, External, Internal, ceiling, roofing, prefabricated House, Container House, Module House

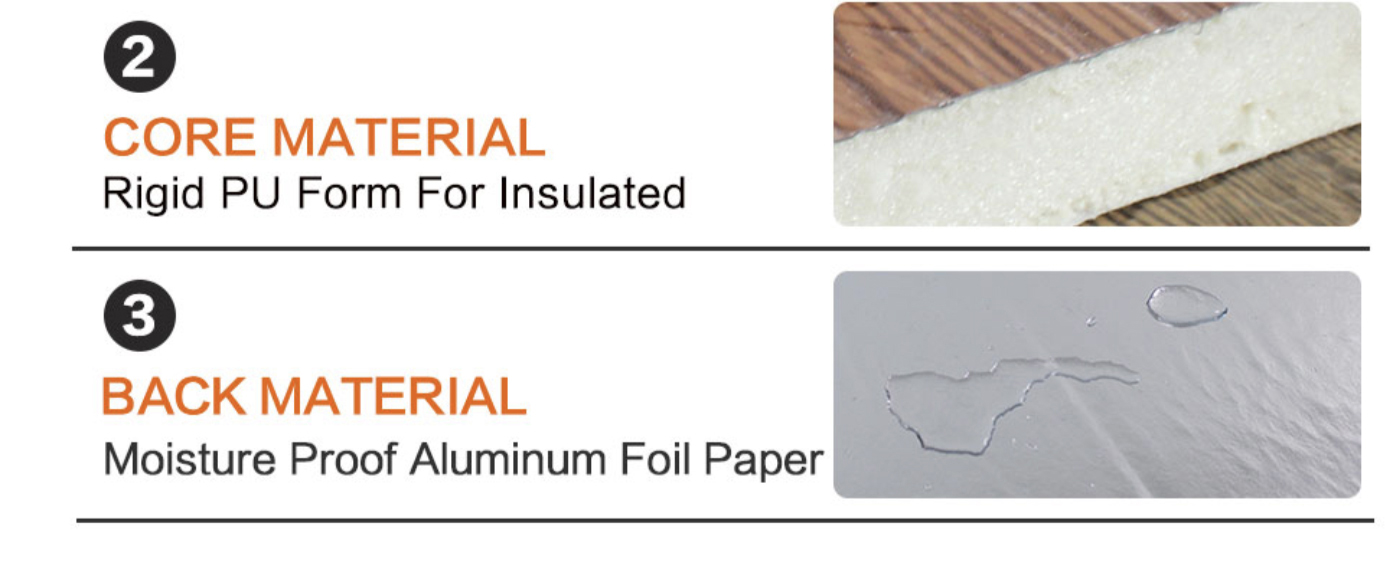

polyurethane foma (40-42kg/m3)
Insulation performance decrease by 5% after 25years.
aluminum foil glass fiber
1. Waterproof
2. thermal insulation
3. more durable than aluminum foil
al-zn steel sheet
1.steel sheet base (0.27mm)
2. al-zn Coat (50g/m2)
3.Nippon / equivalent paint 50um.

16mm

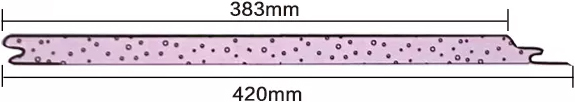

brick line series
16mm

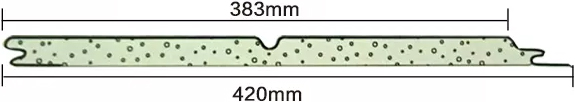

middle ditch series
16mm

Surface density (core material)
42kg/m3
Compressive strenght(core material)
295kpa
Thermal conductivity
Avrage temperature: 10 ℃ 0.022W/(m-k)
Avrage temperature: 25 ℃ 0.024W/(m-k)
Water absorption
0.8%
Vertical tensile strenth(siding)
1.6kpa
Flexual capacity(siding)
Vertical 5.44Mpa
Horizontal 3.88Mpa

Salt spray resistance(steel sheet)
No damage within 500h (neutral salt spray)
Acid resistance(steel sheet)
No abnormality within 24h (5% sulfuric acid)
Alkali resistance(steel sheet)
No abnormality within 24h (5% sodium oxychloride)
High temperature resistance(steel sheet)
600°C
Percentage of close area(core material)
99.70%
Al-Zn coating content
55-57g/m2 (55% aluminum,43% zinc)
Wind pressure resistance(siding)
10kpa the sample is not damaged
Horizontal firing (core material)
HF-1
Combustion performance
Grade B
Heat transfer coefficient
1.50W (m2.K)
Airborne sound insulation
25 dB
Formaldehyde emission(siding)
No-detected
Fluorescent UV lamp aging(steel sheet)
No abnormality in appearance
Metal sidings are not only suitable for the thermal insulation decoration of the exterior walls of new brick-concrete structures, frame structures, steel structures, and light-weight houses, but also for the energy

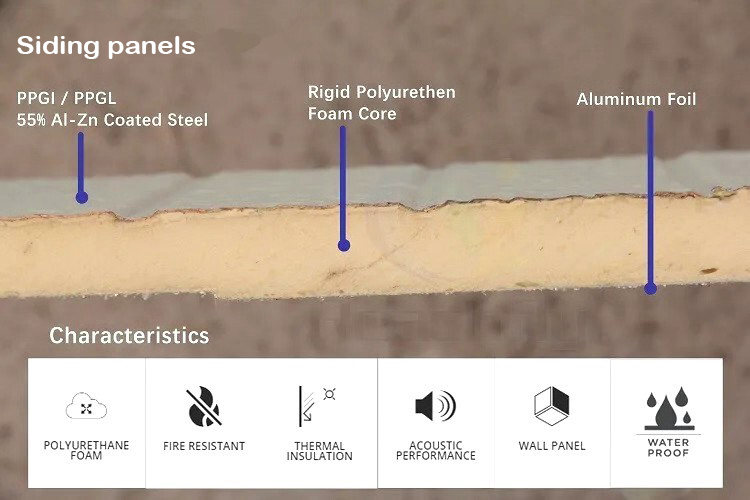

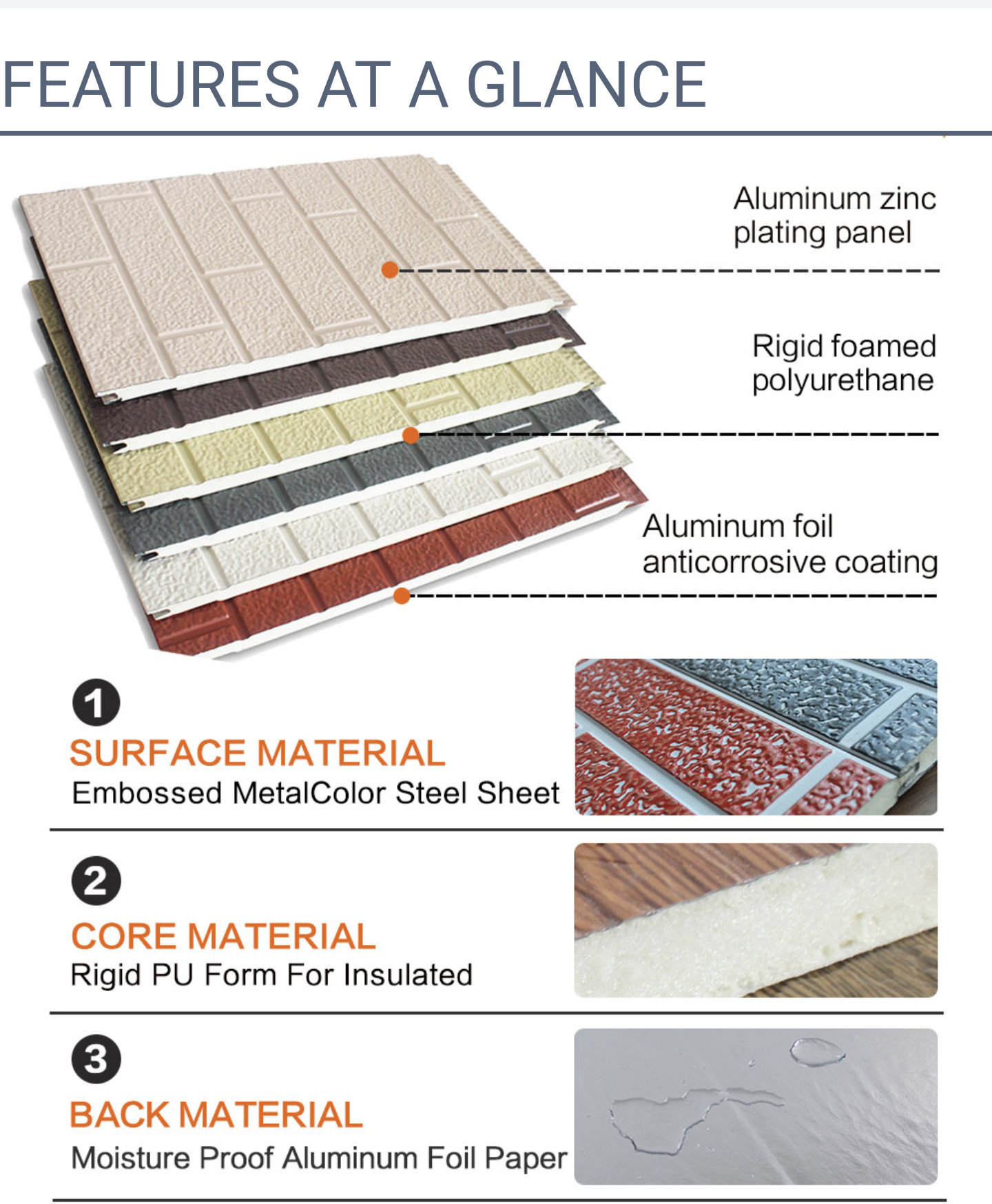

product structure design
Metal carved board is a new type of building decoration and thermal insulation environmental protection material developed in recent years. The material is composed of aluminized zinc steel plate metal fluorocarbon paint, high density polyurethane.
product structure design
Metal carved board is a new type of building decoration and thermal insulation environmental protection material developed in recent years. The material is composed of aluminized zinc steel plate metal fluorocarbon paint, high density polyurethane and aluminum foil cloth.
No
Item
Date
1
Surface
Al-zn alloy coated steel sheet (Al 55% Zn 43%)
2
Thickness
16mm
3
Weight
3.5-3.7 kg/sqm
4
Waterproof Rate
0.08%
5
Thermal Conductivity
0.024 W/m-k
6
Compressive Strength
52.7kpa
7
Fireproof grade
B1 or B2
PU STONE PANELS
